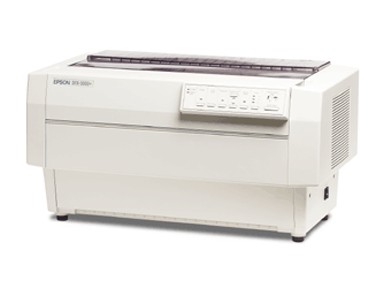

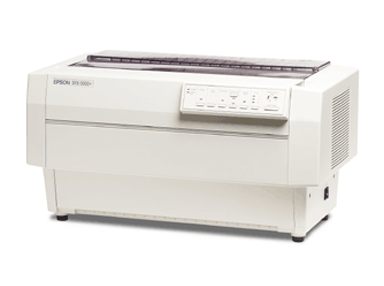

New Epson DFX-5000+ Mono DOT Matrix Printer

Product Specifications & Hardware Details

• Brand: Epson
• MPN: C117001
• Model: DFX-5000+
• Type: High-Volume Industrial 9-Pin Dot Matrix Impact Printer
• Standard Functions: Heavy-Duty Continuous Data Printing, Multi-Part Form Printing, Automatic Paper Thickness Adjustment, Dual Tractor Feeding, Local Workstation Printing.
• Optional Functions: External Wired Network Print Server Modules, Coax/Twinax Interface Cards, Serial Interface Boards.
• What's Included in the Box: Epson DFX-5000+ Printer Base Engine, Pre-installed Dual Front and Rear Push Tractor Assemblies, Built-in Paper Pull Tractor Unit, Standard Parallel Interface Board, Ribbon Cartridge Unit, Software Driver Disk, and Fixed Heavy-Duty Power Cord.
• Required Items (Sold Separately): Standard replacement Epson 8766 Black Fabric Ribbon Cartridges, continuous sprocket-hole fanfold computer data paper or multi-part carbonless carbon form packs, and standard USB-to-Parallel or Centronics Parallel interface cables.

Technical Specifications

Available Options & Consumables

We stock a full range of official accessories and replacement supplies for the Epson DFX-5000+. You can add these to your order directly from the accessories tab below:

• Fabric Ribbon Supply: Genuine Epson 8766 Black Fabric Ribbon Cartridge Unit (lifespan handles up to approximately 15 million text characters)
• Interface Expansion Cards: Epson Specialized Type-B Ethernet Print Server Cards, Twinax Interface Boards, and Coax Interface Boards

Frequently Asked Questions (FAQ)

• What separates the DFX-5000+ model from the legacy baseline DFX-5000?
  The principal hardware upgrade on the DFX-5000+ is the introduction of an Automatic Platen Gap sensor array and slightly enhanced high-speed drive electronics. The built-in thickness tracker reads multi-part carbon stacks dynamically and positions the printhead automatically, eliminating manual platen lever errors. It also improves high-speed draft output to a blistering 560 characters per second and adds a native RS-232C serial connection panel straight out of the box.
• Can I keep two different multi-part accounting forms loaded inside the machine simultaneously?
  Yes. Thanks to the integrated dual push-tractor mechanisms, operators can keep a front-loading shipping manifest stack and a rear-loading inventory billing stack mounted to the tractor pins at the same time. The front panel interface board allows you to switch data paths cleanly with a single button click, removing the hassle of manual media reloads between work runs.
• Can I link up this industrial hardware to a modern computer workstation?
  The native interface panel on this motherboard configuration features a traditional Centronics Parallel port connection slot alongside an RS-232C serial port panel. To connect this workhorse printer seamlessly to a modern laptop or desktop computer that lacks a parallel port, you will need a separate, high-quality Parallel-to-USB converter adapter cable or a network print server hub accessory.
