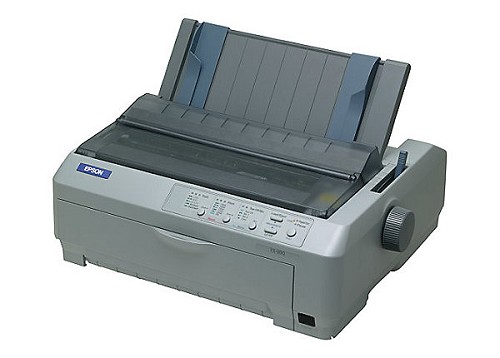

New Epson FX-980 Mono DOT Matrix Printer

Product Specifications & Hardware Details

• Brand: Epson
• MPN: C276001
• Model: FX-980
• Type: 9-Pin Narrow-Carriage Impact Dot Matrix Printer
• Standard Functions: High-Volume Multi-Part Form Printing, Industrial Data Logging, Continuous Tractor-Feed Management, Compact High-Speed Output
• Optional Functions: Serial Connectivity, Automated Cut-Sheet Feeding, Internal Network Card Protocols
• What's Included in the Box: Epson FX-980 Printer, Removable Push Tractor Assembly, Standard Fabric Black Ribbon Cartridge, Platen Knob, Paper Guide Tray, and User Installation Guide.
• Required Items (Sold Separately): Continuous pin-feed paper tracking stock, and a compatible bidirectional parallel interface cord or serial setup adapter.

Technical Specifications

Available Options & Consumables

We stock a full range of official accessories and replacement supplies for the Epson FX-980. You can add these to your order directly from the accessories tab below:

• Ribbon Cartridges: Premium Replacement Black Fabric Ribbon Cartridge (Epson S015019)
• Tractor Upgrades: Optional Pull Tractor Unit (C800301) for specialized bottom or rear paper feeds
• Paper Feed Attachments: Single-bin Cut Sheet Feeder options for stacking standard office forms
• Interface Cards: Type-B Serial Interface Cards, LocalTalk Interface Modules, or Ethernet Print Servers

Frequently Asked Questions (FAQ)

• What separates the FX-980 layout from wide-carriage models like the FX-2180?
  The core print engine speed, multi-part form tracking, and raw durability are very comparable. The distinction lies in form factor: the FX-980 features a narrow 80-column design built for paper widths ranging from 4.0 inches up to 10.1 inches, making it a space-saving option for single invoices. The FX-2180 features a wide 136-column carriage built for wide ledger formats up to 16.0 inches wide.
• How many sheet copies can this high-speed model handle simultaneously?
  The heavy-duty mechanical structure handles high-pressure output capable of processing up to a 6-part form array (1 original statement sheet along with 5 subsequent crisp carbonless copy layers).
• Does this model feature zero-tear-off capability to limit document waste?
  Yes. This device includes an automated short-tear parameter matrix. Once printing ceases, the feeder pushes the continuous form perforation line directly up to the tear bar blade, letting you remove the printed invoice smoothly without discarding or forcing alignment on the next document block.
• How do I change default tracking parameters like line spacing or emulation?
  Hardware baselines are managed via physical onboard DIP switch panels hidden under the front covers. These switch paths let you toggle between Epson ESC/P mode and IBM PPDS emulation mode, alter default line feeds, adjust international character sets, or swap page lengths between 11 inches and 12 inches.
