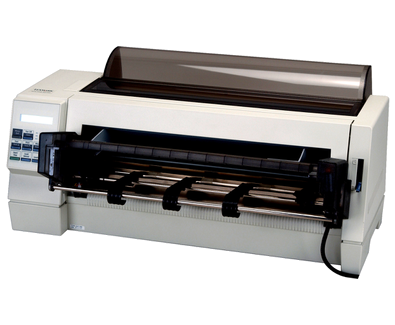

Lexmark Forms 4227+ Mono DOT Matrix Printer Demo

Product Specifications & Hardware Details

• Brand: Lexmark
• MPN: 13L0180
• Model: Forms 4227+
• Type: Heavy-Duty Dot Matrix Forms Printer (Wide Carriage)
• Standard Functions: High-Velocity Monochrome Impact Printing, Automated Thick Paper Calibration, Advanced Paper Jam Elimination.
• Optional Functions: Dual-Tractor Feed Upgrades, Automatic Sheet Feeding.
• What's Included in the Box: Lexmark Forms 4227+ Base Unit, Integrated Front Tractor Feeder, Standard Fabric Ribbon, Quick Reference Guide, User Documentations, and Power Cable.
• Required Items (Sold Separately): Standard USB or Parallel connection data lines, MarkNet external network print servers.

Technical Specifications

Available Options & Consumables

We stock a full range of official accessories and replacement supplies for the Lexmark Forms 4227+. You can add these to your order directly from the accessories tab below:

• Ribbon Supplies: Lexmark 13L0034 Fabric Printer Ribbon (Yields up to 15 million draft characters)
• Paper Handling: Lexmark Tractor 2 Feed Option (Part Number 13L0133), Automatic Sheet Feeder – Wide (Part Number 12T0151)
• Network Upgrades: External Lexmark MarkNet N7002e Fast Ethernet Print Server
• Adapters & Cables: Coax Adapter for SCS (12T0240), Twinax Adapter for SCS (12T0241), or Local Data Cables

Frequently Asked Questions (FAQ)

• What type of print head configuration is built into this heavy-duty hardware?
  The hardware features an 18-pin printhead system built out of dual 9-pin mechanisms that alternate duties. This architecture doubles component efficiency, lowers maintenance costs, and yields a massive printhead life cycle up to 400 million characters.
• What media dimensions can safely be fed through the straight paper path?
  The advanced auto-gap mechanics adapt automatically to continuous tractor forms or sheet-fed paper profiles ranging from a minimum footprint of 3.0 inches x 3.0 inches up to a maximum height layout of 22 inches and wide page width up to 16 in.
• How does the Tractor 2 accessory option help streamline daily document routing workflows?
  Adding the Tractor 2 mechanical upgrade lets operators feed two unique continuous document profiles into the printer infrastructure concurrently. Users can then toggle processing streams instantly at the physical touch of an operator dashboard button.
