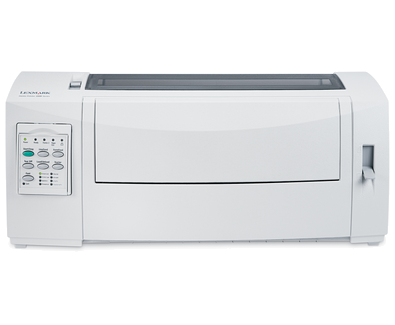

Lexmark Forms 2590+ Mono DOT Matrix Printer Demo

Product Specifications & Hardware Details

• Brand: Lexmark
• MPN: 11C0113
• Model: Forms 2590+
• Type: 24-Pin Dot Matrix Forms Printer (Narrow Carriage)
• Standard Functions: High-Resolution Monochrome Impact Printing, Multipart Forms Support, Font Previewing, Character and Page Monitoring via Operator Panel.
• Optional Functions: Dual-Tractor Loading configurations, Automatic Cut-Sheet Feeding.
• What's Included in the Box: Lexmark Forms 2590+ Base Unit, Front Tractor Feeder, Standard Yield Re-Inking Ribbon (4 million characters), Operator Panel Overlays, Setup and Safety Sheets, and Power Cable.
• Required Items (Sold Separately): Standard USB or Centronics parallel connection cables, replacement re-inking ribbons.

Technical Specifications

Available Options & Consumables

We stock a full range of official accessories and replacement supplies for the Lexmark Forms 2590+. You can add these to your order directly from the accessories tab below:

• Ribbon Supplies: Lexmark Standard Yield Black Ribbon (4 million characters) or High Yield Re-Inking Black Ribbon (8 million characters)
• Paper Handling: Lexmark Narrow Tractor 2 Option (Allows two types of continuous forms to load simultaneously) or Automatic Sheet Feeder (Narrow)
• Network Upgrades: External MarkNet N7020e Gigabit Ethernet, N7002e Fast Ethernet (Parallel), or N7000e Fast Ethernet (USB)
• Interface Options: Internal RS-232C Serial Port Card

Frequently Asked Questions (FAQ)

• What makes the Forms 2590+ model different from the older Forms 2590 configuration?
  The updated "plus" configuration updates core print speeds to reach up to 556 cps at 12 cpi in fast draft mode. It also expands its media mechanics to robustly sustain continuous multipart documentation up to 1+5 parts safely compared to baseline 4-part limits on previous models.
• What physical dimensions of media are supported by this narrow carriage design?
  It manages tractor-fed continuous documents from a minimum page width of 3.0 inches up to a maximum page width of 10 in., and a maximum page length of 22 inches. Narrow sheet-fed single sheets are supported up to a maximum width of 8.5 in.
• Does this printer offer built-in network connectivity out of the box?
  No. The base Forms 2590+ model features standard local USB and Parallel interfaces. For network deployment over LAN infrastructures, external MarkNet print servers must be added separately.
