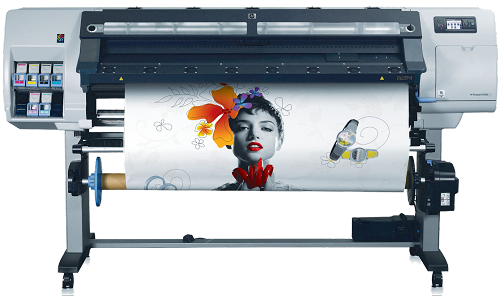

New HP Designjet L25500 60-in Color Wide Printer

Product Specifications & Hardware Details

• Brand: HP
• MPN: CH956A
• Model: Designjet L25500 60-in
• Type: Large-Format Production Latex Roll-to-Roll Printer
• Standard Functions: 60 in. Wide-Format Latex Printing, Roll Feed, Automatic Media Take-up Reel, Automatic Media Cutter, Integrated Curing/Drying Heating System, Embedded Web Server.
• Optional Functions: Advanced Software RIP Orchestration (Requires external software RIP platforms like Onyx or Caldera).
• What's Included in the Box: HP Designjet L25500 60-in Printer Engine, Integrated Printer Stand and Media Collection Bin, 60 in. Roll Media Spindle, Automatic Media Take-up Reel Module, Edge Cleaners, Documentation, Power Cords, and Gigabit Ethernet Interface Card.
• Required Items (Sold Separately): Large-format media rolls up to 60 in. wide, Replacement HP 789 Latex Ink Cartridges (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta), HP 789 Printheads, HP 789 Printhead Cleaning Cartridge, and dual heavy-duty 220V power connection infrastructure.

Technical Specifications

Available Options & Consumables

We stock a full range of official accessories and replacement supplies for the HP Designjet L25500 60-in. You can add these to your order directly from the accessories tab below:

• Hardware Accessories: HP Designjet L25500 60 in. Media Spindle (CQ155A) for fast roll swapping
• Latex Ink Supply Tanks: HP 789 775-ml Black (CH615A), Cyan (CH616A), Magenta (CH617A), Yellow (CH618A), Light Cyan (CH619A), and Light Magenta (CH620A) Cartridges
• Replacement Printheads: HP 789 Yellow/Black (CH612A), Cyan/Light Cyan (CH613A), and Light Magenta/Magenta (CH614A) Printheads
• Maintenance Hardware: HP 789 Printhead Cleaning Cartridge (CH621A) & HP 789 Printhead Cleaning Container (CH622A)

Frequently Asked Questions (FAQ)

• What are the primary benefits of HP Latex inks compared to eco-solvent printing layouts?
  HP Latex inks are water-based, odorless, and completely dry and cured right inside the printer housing. This allows you to laminate, ship, or display billboards and banners immediately upon completion without any off-gassing delays.
• What varieties of heavy and flexible media can this production system feed?
  The heavy roll-to-roll architecture handles materials up to 19.7 mil thick and 60 in. wide, including outdoor banners, self-adhesive vinyls, backlit films, textiles, canvas, papers, and mesh with a specialized liner.
• Can this printer be plugged into a standard 110V household electrical outlet?
  No. Due to the high-draw thermal curing lamps used to dry and seal the latex inks, this 60 in. production machine requires two separate 220V to 240V power lines to operate properly. It will not work on a standard 110V local outlet box.
