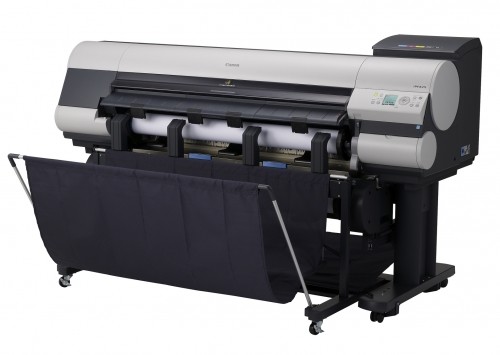

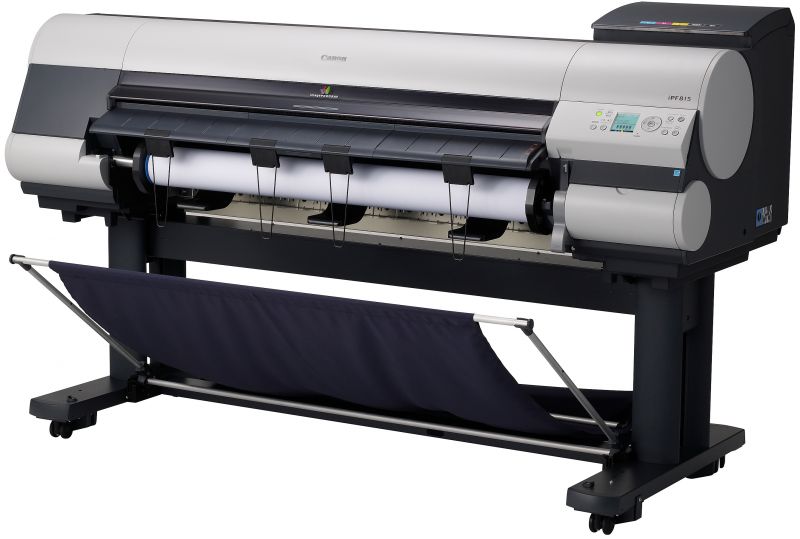

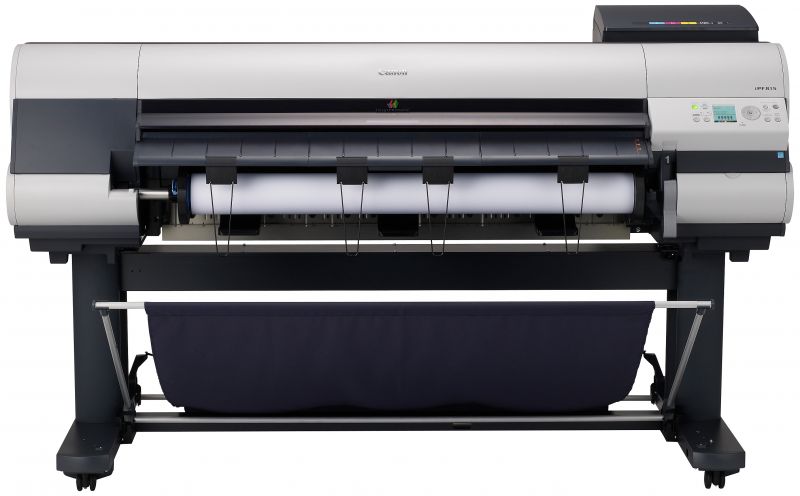

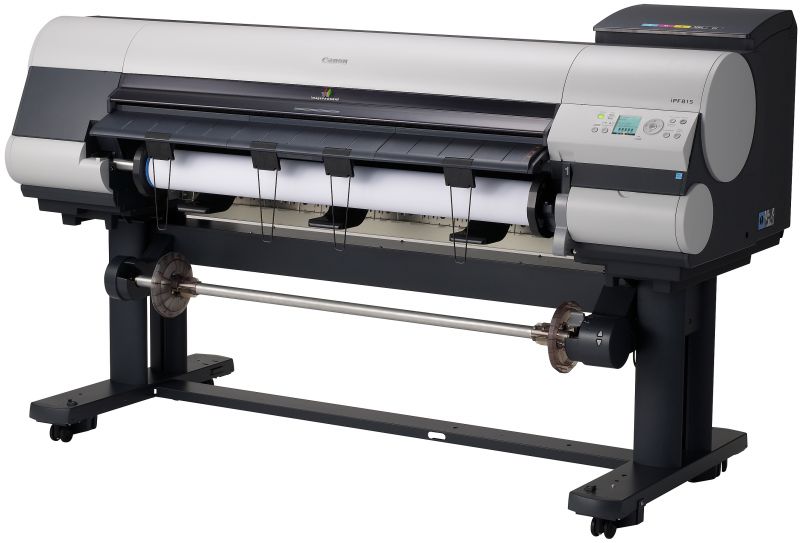

| Printer Type | 5-Color 44-inch Printer |
| Number of Nozzles | Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each |
| Nozzle Pitch | 1,200 dpi
Non-firing nozzle detection and compensation |
| Print Resolution (Up to) | 2,400 x 1,200 dpi (Max) |
| OS Compatibility | Windows XP/Server 2003/Server 2008/Vista/7 (32/64bit), Macintosh OSX 10.3.9-10.6 (32 bit), OS X 10.5-10.6 (64 bit) |
| Standard Interfaces | USB 2.0 High-Speed
10/100 Base-T/TX |
| Ink Droplet Size | 4 picoliter |
| Ink Capacity | 330ml per color (Optional 700ml) |
| Ink Droplet Size | Dye/Pigment Reactive Ink |
| Color Set | Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black |
| Buffer Ram | 32 GB dedicated file processing memory, 384MB RAM |
| Hard Drive | 160 GB |
| Media Width | Cut Sheet: 8 - 44
Roll: 10 - 44 |
| Media Thickness | Front Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil)
Roll: 0.07 - 0.8mm (2.8 - 31.4mil) |
| Maximum Roll Print Length | 59 Feet (18 meters)2 |
| Maximum Media Roll Diameter | 5.9 (150mm) |
| Borderless Printing Width | 10, 14, 17, B2 (20.3/515 mm), A1 (23.4 /594 mm), A0 (33.1/841 mm), 24, 36, B0 (40.6/1,030mm), 42 |
| Paper Feed Method | Roll Feed: One Roll, front output
Front Loading Manual Feed: One sheet, front output |
| Languages | GARO (Canon Proprietary), HP-GL/2, HP RTL |
| Noise Level Approx | Operation: 52 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.8 Bels |
| Physical Dimensions | 45.1 (H) x 74.6 (W) x 50.9 (D) |
| Weight | Approximately 335 lbs. with stand |
| Power Source | AC-100-120V (50-60Hz) |
| Power Consumption | Maximum: 190W or less
Standby: 6W or less
Power Off: 1W or less (Compliant with Executive Order) |
| Operating Environment | Temperature: 59° -86° F (15° -30° C)
Relative Humidity: 10-80% (No Condensation) |
| User-replaceable items | Item: Print Head (PF-03)
Maintenance Cartridge (MC-09)
Ink Tanks (PFI-303/PFI-703) |
| Software Included | PosterArtist Lite, Accounting Manager, Canon Printer Driver, Digital Photo Front-Access, Printer Driver Extra Kit (Free Layout, imageRUNNER Linking Function), HDI Driver for AutoCAD3. |
