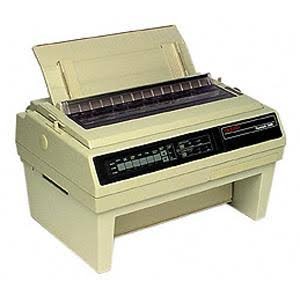

Okidata Pacemark 3410 Mono DOT Matrix Printer Demo

Product Specifications & Hardware Details

• Brand: Okidata
• MPN: 61800801
• Model: Pacemark 3410
• Type: 9-Pin Wide-Format Dot Matrix Impact Printer
• Standard Functions: High-Volume Form and Text Data Processing, High-Speed Continuous Feed Printing, Native Bar Code Font Generation.
• Optional Functions: Single/Dual Bin Cut Sheet Feeders, Pull Tractor Feed Top Extensions.
• What's Included in the Box: Okidata Pacemark 3410 Base Unit, Standard Bottom Push Tractor Feed Unit, Embedded Rear-Feed Tractor Rails, Ribbon Cartridge, Integrated Power Assembly, and Interface Connection Materials.
• Required Items (Sold Separately): Replacement Nylon Ribbon Cartridges, Centronics Parallel Interface Cables, or RS-232C 9-Pin Serial Connectivity Hardware.

Technical Specifications

Available Options & Consumables

We stock a full range of official accessories and replacement supplies for the Pacemark 3410. You can add these to your order directly from the accessories tab below:

• Media Feed Upgrades: OKI 70010601 (Single Bin Cut Sheet Feeder), 70010701 (Dual Bin Cut Sheet Feeder), and 70011701 (Pull Tractor Configuration Kit)
• Network Servers: OkiLAN 6020e 10/100 Base-T External Print Server (70036001) & Co-axial Legacy Adapters
• Replacement Software: MICROLINE/PACEMARK Resident Native Emulation Chip Set Hardware (70022001)

Frequently Asked Questions (FAQ)

• What emulation control standards are standard on the Pacemark 3410?
  This model includes co-resident software emulation support architectures imitating both standard Epson FX series control routines and the IBM Proprinter platform commands straight out of the box.
• How wide of a print canvas does this impact chassis support?
  The machine handles wide-format document feeds accommodating up to 136-column formats using standard character fonts, or up to 272 columns when set to high-density compressed formats of 20 characters per inch.
• What interfaces are used to connect this hardware to computing stations?
  The Pacemark 3410 comes built with dual physical data communication terminals containing a standard Centronics 36-pin Parallel interface port paired alongside an RS-232C 9-pin Serial connection array.
